C90 Series Brushless DC Blower

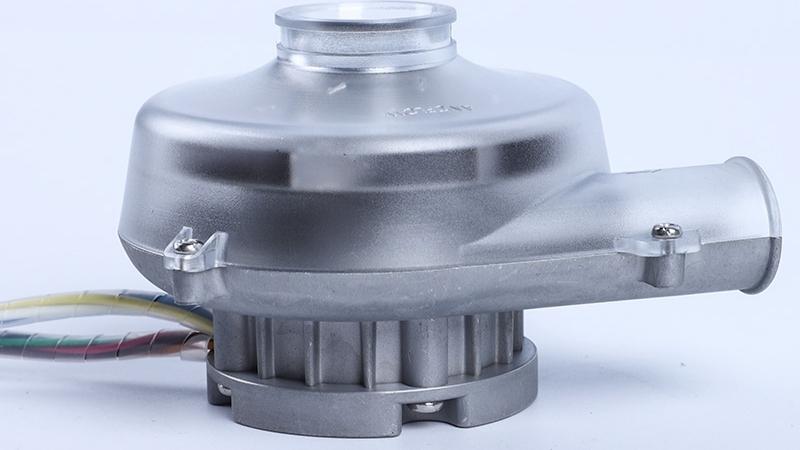

C9005 12V/24V/48V Brushless DC Blower

C9005 12V/24V/48V Brushless DC Blower
C9005 12V/24V/48V Brushless DC Blower

Description

Reviews

Quick Overview

Place of Origin Nanjing, China
Brand Name ANCFLOW
Model Number C9005-24V-1
Part Name Brushless DC Blower
Rated Power (W) 82
Rated Voltage (V) 24
Power Supply Type DC
Driver Layout External
max.Static Pressure 7.5kPa
max.Flow Rate 980LPM(58.8m³/h)
Rated Static Pressure 5.5kPa
Rated Flow Rate 408LPM(24.5m³/h)
Temperature Range(ambient) -20℃~+50℃
Humidity Range(ambient) ≤85%RH
Size103.2*95.4*69.3mm
Service life (L10 at 40℃) 20,000h
Certification RoHS, CE
MOQ 1
Application Field Medical & Big Health, Industrial Automation


Delivery Leadtime

Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 15 25 To be negotiated


Detailed Parameters

Product Model AB C9005-24V-1 Brand ANCFLOW
Product SPEC AB C9005-24V-7.5kPa-980LPM max.Speed 28,500 rpm
Part Name Brushless DC Blower max.Flow-rate 980LPM(58.8m³/h)
Motor Driver AC01A, AC14C max.flow Speed 72.0m/s
Motor Driver Layout External max.Static Pressure 7.5kPa
Lifetime(L10 at 40℃) 20,000h Rated Speed 25,300rpm
Rate Voltage 24VDC Rated Airflow 408LPM(24.5m³/h)
Voltage Range 14-28V Rated Static Pressure 5.5kPa
Peak Power112W Work Temp. -20℃~+50℃
Rated Power 82W Humidity Range ≤85%RH
ID of Inlet 26.0mm ID of Outlet 17.0mm
Mass 310g Wire Length 300mm
Size103.2*95.4*69.3mm
Bearing Ball Bearing (NMB)
Housing Material PC Impeller Material Aluminium Alloy
Application Scenarios medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.


Performance Curves


Interface Drawing

C90-1/C90-2 Series
