Products Blower
(4 products)

C60 Series

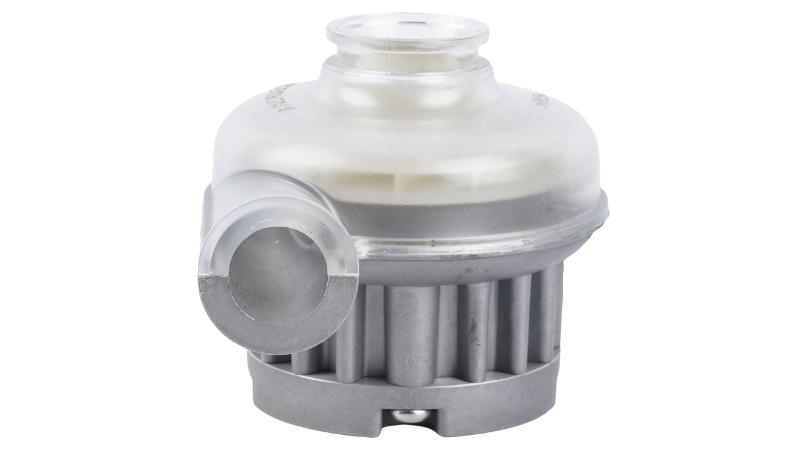

C60 Series Brushless DC Blower - Compact, Quick Dynamic Response


ADT C60 series brushless DC blower is a highly compact model, and can be easily integrated into an equipment. It is characterized in particular by its very compact size, as well as quick dynamic reponse and low noise.


Technical data – C60 Series Brushless DC Blower


Air Flow Rate

Static Pressure

Power Consumption


up to 27.0 m³/h

up to 7.0kPa



Features of Our BLDC Blower

  • Compact Size with external driver

  • max. Static Pressure: 7.0kPa(sealed pressure)

  • max. air flow: 450LPM (27.0 m³/h)

  • Dynamic Response:≤100ms

  • Speed Regulating by 0-5V voltage or PWM Signal

  • Speed Feedback: one pulse per rotation

  • Providing multiple protection functions: overvoltage, undervoltage, overcurrent, locked-rotor protection.

  • Providing fault feedback indication

  • Certifications: CE, RoHS, REACH


Advantages of Our BLDC Blower

  • Strong power

  • Compact design

  • Long life and maintenance free

  • Quick Dynamics Response

  • Low noise

  • High efficiency, lower energy consumption


Application Scenarios

  • Sleep ventilator

  • Phlegm machine

  • Gas test

  • PARR

  • Industriral Automation


Current catalog for Brushless DC Blowers

View our PDF, view our Solution!

Total 4 Page 2 Records
1 2

Product List - C60 Our BLDC Blower

No. Product Model Volt. max. Static
max. Flow Rate max.
    V kPa LPM m³/h W rpm Y/N
1 C6001 12
7.0 450 27.0 65 44,800 N
2 C6002 12
7.0 450 27.0 65 44,800 Y
3 C6006 12
5.3 422 25.3 43 37,000 Y
4 C6008 12
4.5 386 23.2 38 34,000 Y

Product Portfolio Matrix

    C60-1 C60-2 C60-3 C60-4
1 Functions Same
2 Performance Same
3 Lifetime ≥20,000
4 Voltage Range 9-60VDC
5 Current Same
6 Ambient Temperature -20~+50℃ -40~+50℃ -20~+50℃ -40~+50℃
7 Ambient Humidity ≤80% ≤95% ≤80% ≤95%
8 Acid/Alkali-resisting No Yes No Yes
9 Corrosion Preventive No Yes No Yes
10 Size 60.5*76.0*56.060.5*76.0*56.0
11 Mass180200175195
12 Housing material PC PCPC PC
13 Impeller material PA66 PA66 PA66 PA66

Purchase FAQ

1.Are you a factory or only a trading company?

We have a factory to produce brushless DC blowers, fans, motors and motor drivers.

2.Why to choose us?
  1. Professional- we always offer system solutions based on your specific application scenarions.

  2. Reliable- we have a robust manufacturing and quality assurance system in place, can offer customers with high quality products with competitive price..

3.How abut the shipping cost?

Out price is an ex-work price. We can quote the price based on FOB, CIF&CNF as you like, then you can choose whether to use our forwarder or yours.

4. How about the price? Can you make it cheaper?

The price depends on product model types and its order size. The final quotation will be based on your full description of SOR or SPEC.

5.How about the lead time? What is the payment?

According to customer's specific requirements, if to choose a base model, then it will take 5-10 days after e-proof confirmed and your payment is received.
