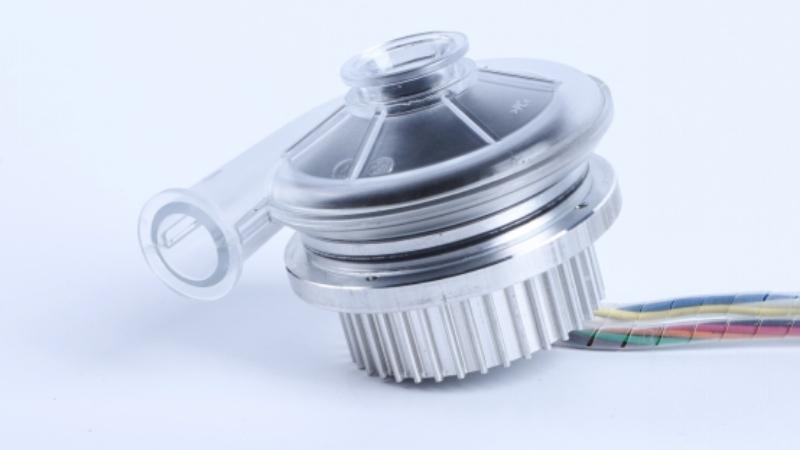

C8016 12V/24V/48V Brushless DC Blower

C8016 12V/24V/48V Brushless DC Blower
C8016 12V/24V/48V Brushless DC Blower

Description

Reviews

Quick Overview

Place of Origin Nanjing, China
Brand Name ANCFLOW
Model NumberC8016-12/24/48V-1
Part Name Brushless DC Blower
Rated Power (W) 70
Rated Voltage (V) 12/24/48
Power Supply Type DC
Driver Layout External
max.Static Pressure 8.5kPa
max.Flow Rate 722LPM(43.3m³/h)
Rated Static Pressure 7.0kPa
Rated Flow Rate 282LPM(16.9m³/h)
Temperature Range(ambient) -20℃~+50℃
Humidity Range(ambient) ≤85%RH
Size85.3*82.2*60.9mm
Service life (L10 at 40℃) 20,000h
Certification RoHS, CE, ISO10993
MOQ 1
Application Field Medical&Big Health, Industial Automation


Delivery Leadtime

Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 15 25 To be negotiated


Detailed Parameters

Product Model AB C8016-24V-1 Brand ANCFLOW
Product SPEC AB C8016-24V-8.5kPa-722LPM max.Speed 38,800rpm
Part Name Brushless DC Blower max.Flow-rate 722LPM(43.3m³/h)
Motor Driver AC06B max.flow Speed 73.9m/s
Motor Driver Layout External max.Static Pressure 8.5kPa
Lifetime(L10 at 40℃) 20,000h Rated Speed 33,800rpm
Rate Voltage 24VDC Rated Airflow 282LPM(16.9m³/h)
Voltage Range 14-28V Rated Static Pressure 7.0kPa
Peak Power 95W Work Temp. -20℃~+50℃
Rated Power 70W Humidity Range ≤85%RH
ID of Inlet 22.7mm ID of Outlet 14.4mm
Mass 340g Wire Length 300mm
Size85.3*82.2*60.9mm
Bearing Ball Bearing (NMB)
Housing Material PC Impeller Material PA66
Application Scenarios medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.


Performance Curves


Interface Drawing

C80-1/C80-2 Series
