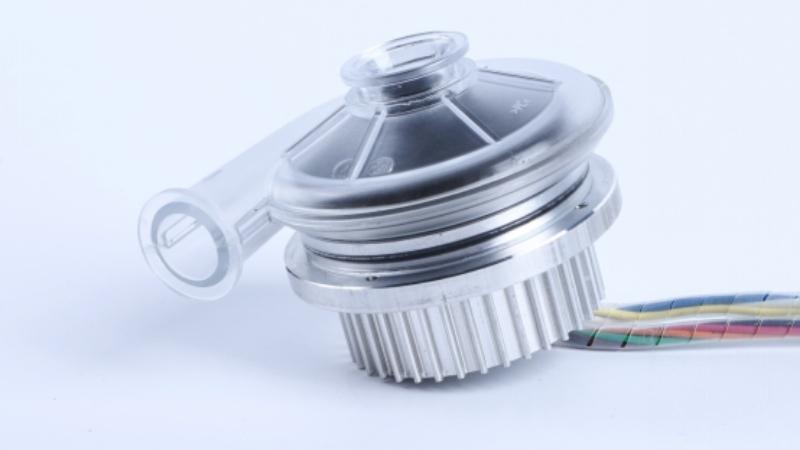

C8015 12V/24V/48V Brushless DC Blower

C8015 12V/24V/48V Brushless DC Blower
C8015 12V/24V/48V Brushless DC Blower

Description

Reviews

Quick Overview

Place of Origin Nanjing, China
Brand Name ANCFLOW
Model Number C8015-24V-1
Part Name Brushless DC Blower
Rated Power (W) 72
Rated Voltage (V) 24
Power Supply Type DC
Driver Layout External
max.Static Pressure 8.5kPa
max.Flow Rate 700LPM(42.0m³/h)
Rated Static Pressure 6.7kPa
Rated Flow Rate 292LPM(17.5m³/h)
Temperature Range(ambient) -20℃~+50℃
Humidity Range(ambient) ≤85%RH
Size85.3*82.2*60.9mm
Service life (L10 at 40℃) 20,000h
Certification RoHS, CE, ISO10993
MOQ 1
Application Field Medical&Big Health, Industial Automation


Delivery Leadtime

Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 15 25 To be negotiated


Detailed Parameters

Product Model AB C8015-24V-1 Brand ANCFLOW
Product SPEC AB C8015-24V-8.5kPa-700LPM max.Speed37,600rpm
Part Name Brushless DC Blower max.Flow-rate 700LPM(42.0m³/h)
Motor Driver AC01A, AC14C max.flow Speed 71.7m/s
Motor Driver Layout External max.Static Pressure 8.5kPa
Lifetime(L10 at 40℃) 20,000h Rated Speed 32,500rpm
Rate Voltage 24VDC Rated Airflow 292LPM(17.5m³/h)
Voltage Range 14-28V Rated Static Pressure 6.7kPa
Peak Power98W Work Temp. -20℃~+50℃
Rated Power 72W Humidity Range ≤85%RH
ID of Inlet 22.7mm ID of Outlet 14.4mm
Mass 330g Wire Length 300mm
Size85.3*82.2*60.9mm
Bearing Ball Bearing (NMB)
Housing Material PC Impeller Material PA66
Application Scenarios medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.


Performance Curves


Interface Drawing
