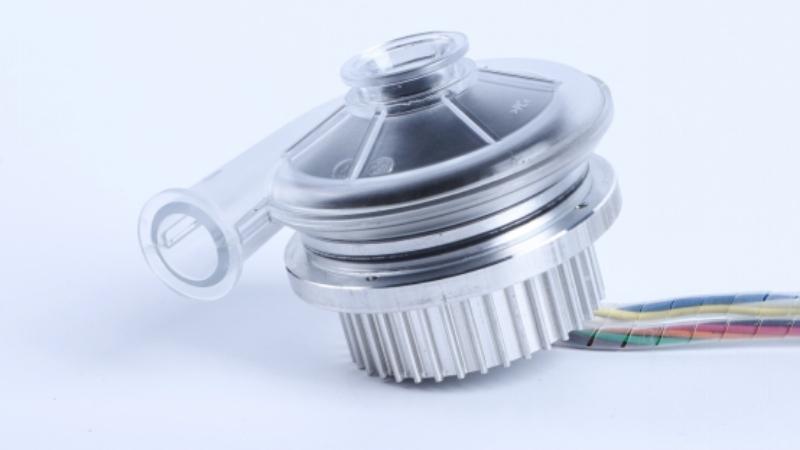

C8001 12V/24V/48V Brushless DC Blower

Description

Place of Origin	Nanjing, China
Brand Name	ANCFLOW
Model Number	C8001-24V-1
Part Name	Brushless DC Blower
Rated Power (W)	187
Rated Voltage (V)	24
Power Supply Type	DC
Driver Layout	External
max.Static Pressure	17.0kPa
max.Flow Rate	960LPM（57.6m³/h）
Rated Static Pressure	13.0kPa
Rated Flow Rate	430LPM（25.8m³/h）
Temperature Range(ambient)	-20℃~+50℃
Humidity Range(ambient)	≤85%RH
Size	85.382.260.9mm
Service life (L10 at 40℃)	20,000h
Certification	RoHS, CE, ISO10993
MOQ	1
Application Field	Medical&Big Health, Industial Automation

Quantity(Pieces)	1 - 100	101 - 1000	>1000
Est. Time(days)	15	25	To be negotiated

Product Model	AB C8001-24V-1	Brand	ANCFLOW
Product SPEC	AB C8001-24V-17.0kPa-960LPM	max.Speed	54,500 rpm
Part Name	Brushless DC Blower	max.Flow-rate	960LPM（57.6m³/h）
Motor Driver	AC06B	max.flow Speed	98.29m/s
Motor Driver Layout	External	max.Static Pressure	17.0kPa
Lifetime(L10 at 40℃)	20,000h	Rated Speed	48,000rpm
Rate Voltage	24VDC	Rated Airflow	430LPM（25.8m³/h）
Voltage Range	14-28V	Rated Static Pressure	13.0kPa
Peak Power	240W	Work Temp.	-20℃~+50℃
Rated Power	187W	Humidity Range	≤85%RH
ID of Inlet	22.7mm	ID of Outlet	14.4mm
Mass	330g	Wire Length	300mm
Size	85.382.260.9mm	Bearing	Ball Bearing (NMB)
Housing Material	PC	Impeller Material	PA66
Application Scenarios	medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.
