C60 Series

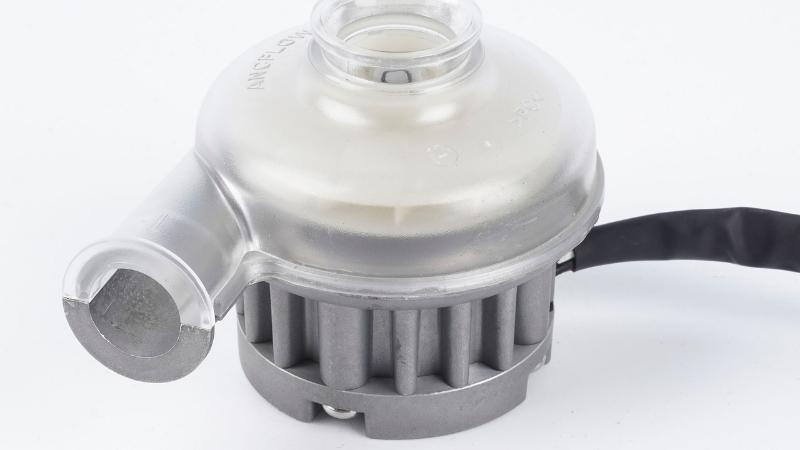

C6008 12V/24V/48V Brushless DC Blower

C6008 12V/24V/48V Brushless DC Blower
C6008 12V/24V/48V Brushless DC Blower

Description

Reviews

Quick Overview

Place of Origin Nanjing, China
Brand Name ANCFLOW
Model NumberC6008-12/24/48V-1/3
Part Name Brushless DC Blower
Rated Power (W)31
Rated Voltage (V)12/24/48
Power Supply Type DC
Driver Layout External
max.Static Pressure 4.5kPa
max.Flow Rate 386LPM(23.2m³/h)
Rated Static Pressure 3.1kPa
Rated Flow Rate181LPM(10.8m³/h)
Temperature Range(ambient) -20℃~+50℃
Humidity Range(ambient) ≤85%RH
Size60.5*76.0*55.0mm/60.5*76.0*48.0mm
Service life (L10 at 40℃) 20,000h
Certification RoHS, CE
MOQ 1
Application Field Medical&Big Health, Industial Automation


Delivery Leadtime

Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 15 25 To be negotiated


Detailed Parameters

Product Model AB C6008-24V-1 Brand ANCFLOW
Product SPEC AB C6008-24V-4.5kPa-386LPM max.Speed 35,300 rpm
Part Name Brushless DC Blower max.Flow-rate386LPM(23.2m³/h)
Motor DriverAC06B max.flow Speed 44.97m/s
Motor Driver LayoutExternal max.Static Pressure 4.5kPa
Lifetime(L10 at 40℃) 20,000h Rated Speed 30,500rpm
Rate Voltage 24VDC Rated Airflow 181LPM(10.8m³/h)
Voltage Range 14-28V Rated Static Pressure 3.1kPa
Peak Power38W Work Temp. -20℃~+50℃
Rated Power 31W Humidity Range ≤85%RH
ID of Inlet 20.3mm ID of Outlet 13.5mm
Mass 250g Wire Length 300mm
Size60.5*76.0*55.0mm
Bearing Ball Bearing (NMB)
Housing Material PC Impeller Material PA66
Application Scenariosmedical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.


Performance Curves


Interface Drawing

C60-1/C60-2 Series

C60-3/C60-4 Series
