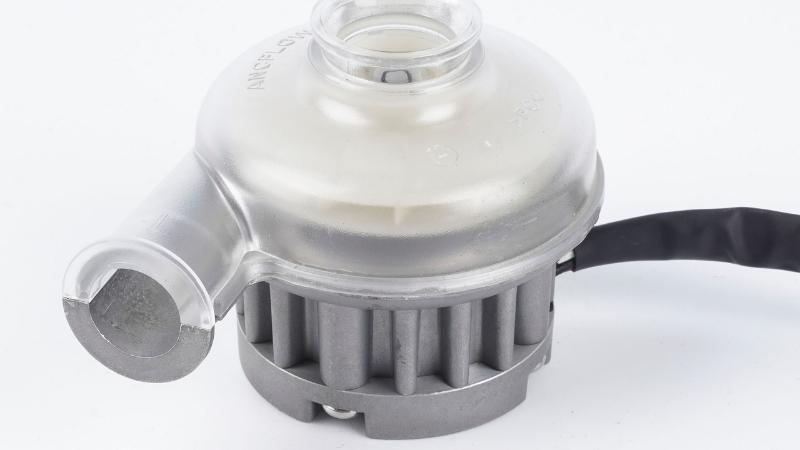

C6001 12V/24V/48V Brushless DC Blower

Description

Place of Origin	Nanjing, China
Brand Name	ANCFLOW
Model Number	C6001-12/24V-1/3
Part Name	Brushless DC Blower
Rated Power (W)	50
Rated Voltage (V)	12/24
Power Supply Type	DC
Driver Layout	External
max.Static Pressure	7.0 kPa
max.Flow Rate	450LPM（27.0m³/h）
Rated Static Pressure	5.5kPa
Rated Flow Rate	202LPM（12.1m³/h）
Temperature Range(ambient)	-20℃~+50℃
Humidity Range(ambient)	≤85%RH
Size	60.576.055.0mm/60.576.048.0mm
Service life (L10 at 40℃)	20,000h
Certification	RoHS, CE
MOQ	1
Application Field	Medical&Big Health, Industial Automation

Quantity(Pieces)	1 - 100	101 - 1000	>1000
Est. Time(days)	15	25	To be negotiated

Product Model	AB C6001-24V-1	Brand	ANCFLOW
Product SPEC	AB C6001-24V-7.0kPa-450LPM	max.Speed	46,200 rpm
Part Name	Brushless DC Blower	max.Flow-rate	450LPM（27.0m³/h）
Motor Driver	AC01A, AC14C	max.flow Speed	52.42 m/s
Motor Driver Layout	External	max.Static Pressure	7.0 kPa
Lifetime(L10 at 40℃)	20,000h	Rated Speed	39,600 rpm
Rate Voltage	24VDC	Rated Airflow	202LPM（12.1m³/h）
Voltage Range	14-28V	Rated Static Pressure	5.5 kPa
Peak Power	65W	Work Temp.	-20℃~+50℃
Rated Power	50W	Humidity Range	≤85%RH
ID of Inlet	20.3mm	ID of Outlet	13.5mm
Mass	250g	Wire Length	300mm
Size	60.576.055.0mm	Bearing	Ball Bearing (NMB)
Housing Material	PC	Impeller Material	PA66
Application Scenarios	medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.
